irsol::server::handlers::CommandGIHandler Class Reference

Handler for the gi command (single frame acquisition). More...

#include <command_gi.hpp>

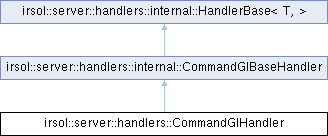

Inheritance diagram for irsol::server::handlers::CommandGIHandler:

Public Member Functions
	CommandGIHandler (std::shared_ptr< Context > ctx)
	Constructs the CommandGIHandler.
Public Member Functions inherited from irsol::server::handlers::internal::CommandGIBaseHandler
	CommandGIBaseHandler (std::shared_ptr< Context > ctx)
	Constructs the CommandGIBaseHandler.
Public Member Functions inherited from irsol::server::handlers::internal::HandlerBase< T, >
virtual std::vector< out_message_t >	operator() (const irsol::types::client_id_t &clientId, T &&message)
	Invokes the handler for a given client and message.

Private Member Functions
std::vector< irsol::protocol::OutMessage >	validate (const protocol::Command &message, std::shared_ptr< irsol::server::ClientSession > session) const override
	Validates the gi command parameters.
uint64_t	getInputSequenceLength (const protocol::Command &message, std::shared_ptr< irsol::server::ClientSession > session) const override
	Returns the input sequence length for the gi command (always 1).
double	getFrameRate (const protocol::Command &message, std::shared_ptr< irsol::server::ClientSession > session) const override
	Returns the frame rate for the gi command.

Additional Inherited Members
Protected Member Functions inherited from irsol::server::handlers::internal::CommandGIBaseHandler
std::vector< out_message_t >	process (std::shared_ptr< irsol::server::ClientSession > session, protocol::Command &&message) final override
	Processes a frame acquisition command, starting the frame collection thread.
Protected Member Functions inherited from irsol::server::handlers::internal::HandlerBase< T, >
	HandlerBase (std::shared_ptr< Context > ctx)
	Constructs the handler base.
virtual std::vector< out_message_t >	process (std::shared_ptr< irsol::server::ClientSession > session, T &&message)=0
	Processes the protocol message for the given session.
Protected Attributes inherited from irsol::server::handlers::internal::HandlerBase< T, >
std::shared_ptr< Context >	ctx
	Handler context (provides access to app and utilities).

Detailed Description

Handler for the gi command (single frame acquisition).

Processes the gi command to acquire a single frame from the camera.

Definition at line 24 of file command_gi.hpp.

Constructor & Destructor Documentation

CommandGIHandler()

irsol::server::handlers::CommandGIHandler::CommandGIHandler

(

std::shared_ptr< Context >

ctx

)

Constructs the CommandGIHandler.

Parameters

ctx	Handler context.

Definition at line 13 of file command_gi.cpp.

  : internal::CommandGIBaseHandler(ctx)
{}

Member Function Documentation

getFrameRate()

double irsol::server::handlers::CommandGIHandler::getFrameRate ( const protocol::Command &  message, std::shared_ptr< irsol::server::ClientSession >  session  ) const

overrideprivatevirtual

Returns the frame rate for the gi command.

Parameters

message	The command message.
session	The client session.

Returns

Frame rate (always -1.0 for single frame).

Implements irsol::server::handlers::internal::CommandGIBaseHandler.

Definition at line 35 of file command_gi.cpp.

{
  // for 'gi' command we mock the FPS to -1, so that the FrameCollector knows we're only
  // interested in 1 frame
  return -1.0;
}

getInputSequenceLength()

uint64_t irsol::server::handlers::CommandGIHandler::getInputSequenceLength ( const protocol::Command &  message, std::shared_ptr< irsol::server::ClientSession >  session  ) const

overrideprivatevirtual

Returns the input sequence length for the gi command (always 1).

Parameters

message	The command message.
session	The client session.

Returns

Number of frames to acquire (always 1).

Implements irsol::server::handlers::internal::CommandGIBaseHandler.

Definition at line 27 of file command_gi.cpp.

{
  // For 'gi' command, we always capture only 1 frame at the time
  return 1;
}

validate()

std::vector< irsol::protocol::OutMessage > irsol::server::handlers::CommandGIHandler::validate ( const protocol::Command &  message, std::shared_ptr< irsol::server::ClientSession >  session  ) const

overrideprivatevirtual

Validates the gi command parameters.

Parameters

message	The command message.
session	The client session.

Returns

Vector of outbound error messages (empty if valid).

Implements irsol::server::handlers::internal::CommandGIBaseHandler.

Definition at line 18 of file command_gi.cpp.

{
  // For 'gi' command, no further validation to do.
  return {};
}

---

The documentation for this class was generated from the following files:

• src/irsol/include/irsol/server/handlers/command_gi.hpp
• src/irsol/lib/irsol/server/handlers/command_gi.cpp
